Finishing tools Multi-Head Ø3.0-320.0
Fine boring head MULTI Ø3.0-320.0- for boring bars with a shank diameter of 16mm and fine boring bridges
- diametrical adjustment with maximal reduced reversal backlash
- 0.01mm diametrical adjustment resp. 0.002mm by nonius
- with inner coolant supply
- boring bars go through head (L1)
Start inquiry

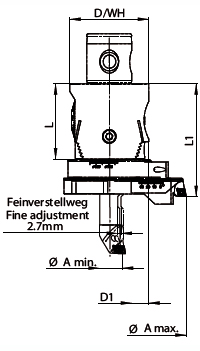

| Bestell-Nr. | WH | D | D1 | Ø A min.-max. | Ø A1 min.- max. | L | L1 | dxf | step |  |
|
| B10.063.025.060 | WH6 | 63 | 63 | 3 - 88.1 | 86 - 320 | 60 | 89 |  |
 |
 |
